The 685-0.5 ComboPak offers excellent laser performance, useful for a wide range of laser and LED devices. With 20uA set point resolution and less than 5uA of noise, the 685-0.5 provides a transparent driver that won’t interfere with the performance of your laser or LED devices. Couple that with a high-performance TEC controller that supports excellent long-term stability and high resolution.
Develop with a ComboSource, Deploy with a ComboPak
The ComboPak is command-set compatible with the ComboSource and also features the same laser and TEC interfaces. This means you can start your development with the ComboSource, a robust benchtop instrument with a full user interface and display, then move to the lower cost ComboPak as you roll out the application to production or your end-users.
Analog or Computer — Your Choice
The 685 Series ComboPaks provide both a robust analog interface as well as USB computer control for precise remote operation (you can even use both interfaces simultaneously). The analog interface provides on/off control and status, while the computer interface provides complete control over all operating parameters.
Analog Modulation
The 685-0.5’s analog interface supports modulation rates up to 100kHz.
Simple Multi-Channel System
Using the 1402C-RM Rack Mount Tray, you can quickly rack groups of 3 or 5 Paks into a rack for a quick multi-channel system.
Universal AC Input
The ComboPak features a universal AC input, eliminating the need to reconfigure the instrument when moving your application internationally.
Summary
| Laser Driver | 500mA, 10 Volt |
| Temperature Controller | 3 Amp, 3.5 Volt, 10.5 Watt |
Laser Driver
LASER CURRENT
| Range (mA) | 0 – 500 |
| Resolution (mA) | 0.01 |
| Accuracy (±[% set + mA]) | 0.025% + 0.03 |
| Stability (ppm, time) | < 10, 1 hour |
| Temperature Coeff (ppm/°C) | 50 |
| Noise/Ripple (μA rms, low BW) | < 5 |
| Transients (μA) | < 100 |
| Compliance Voltage (V) | 10 |
| Modulation Bandwidth (kHz) | 100 |
| Modulation Input Range | 0 – 10V, 10kΩ |
PHOTODIODE CURRENT
| Range (μA) | 5 – 5,000 |
| Resolution (μA) | 0.1 |
| Accuracy (±[% set+μA]) | 0.05% + 1 |
| Stability (ppm, time) | < 200, 24 hours |
| Temperature Coeff (ppm/°C) | < 200 |
| PD Bias (V) | -2.5V, fixed |
LASER VOLTAGE
| Range (V) | 0 – 10 |
| Resolution (V) | 0.001 |
| Accuracy (±[% set+V]) | 0.05% + 0.005 |
| Stability (ppm, time) | < 50, 1 hour |
| Temperature Coeff (ppm/°C) | < 100 |
| Four-wire Measurement | Yes |
LIMITS
| Current Limit Accuracy (mA) | 5 |
| Voltage Limit Accuracy (±% FS) | 2.5% |
Temperature Controller
| Power (A, V, W) | ±3A, ±3.5V, 10.5W |
TEMPERATURE
| Stability (1 hour, °C) | 0.002 |
| Stability (24 hours, °C) | 0.005 |
| Range (°C) | -99 to 250 |
| Resolution (°C) | 0.01 |
| Temperature Accuracy at 25°C (°C) | 0.03 |
Sensor
| Type | Thermistor |
| Accuracy (±[% reading + kΩ]) | 0.05 + 0.005 |
| Range (kΩ) | 0.02 – 45 |
| Resolution (kΩ) | 0.001 |
| Bias (µA) | 100 |
CURRENT
| Range (A) | ±3 |
| Compliance Voltage (V) | > ±3.5 |
| Max Power (W) | 10.5 |
| Resolution (A) | 0.01 |
| Accuracy (±[% value + A]) | 0 + 0.03 |
| Noise/Ripple (A, rms) | < 0.005 |
| Current Limit Accuracy (A) | 0.05 |
VOLTAGE (measurement only)
| Accuracy (±[% reading + V]) | 0 + 0.05 |
| Range (V) | > ±3.5 |
| Resolution (V) | 0.01 |
General

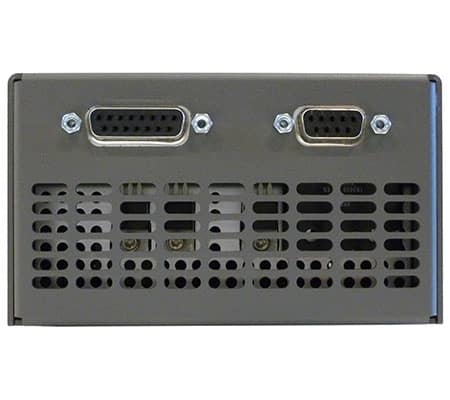

| Laser Connector | DB-9, female |
| TEC Connector | DB-15, female |

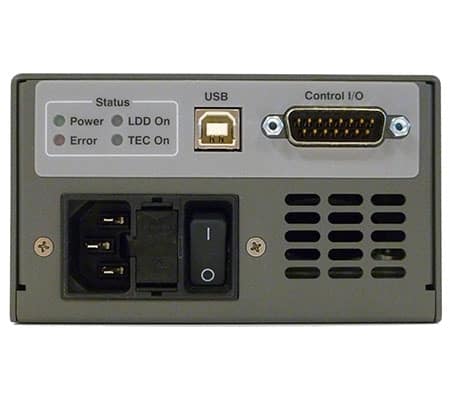

| Computer Interface | USB 2.0 Full Speed (USB Type B) |
| Power | Universal 90 – 250 VAC 50/60 Hz |
| Size (H x W x D) [inches (mm)] | 2.6 (66) x 4.5 (114.3) x 8.5 (215) |
| Operating Temperature | +10°C to +40°C |
| Storage Temperature | -20°C to +60°C |
