The 4302 LaserSource offers the highest accuracy and lowest noise rating in the 4300 LaserSource family. Intended for use with higher power pump modules and other devices needing up to 2A of current.

High Compliance

The 4302 features a high 15V compliance for higher voltage applications, such as LED testing or quantum cascade lasers (QCLs), as well as excellent performance with lower voltage laser diodes.

Simple User Interface

The 4302’s user interface is remarkably simple… so easy to use, you’ll have it up and running in no time. Unlike other instruments which rely on 7-segment LED displays and a confusing array of indicators and buttons, the 4302 instead presents information on a high contrast VFD display in an easy-to-read format. The 4302 displays current, voltage, and photodiode current simultaneously… no need to toggle through the readings as you would on most instruments. Settings and error messages are in clear English, not cryptic codes and flashing status lights.

Optional Quasi-CW (QCW) Mode

The 4302 offers an optional QCW mode (see the 4302-QCW model), a feature not found in most other laser drivers in this price range. Many applications require the low duty cycle, high current pulses that QCW offers to manage thermal loading on the device. With rise times of less than 20µs, and pulse widths as narrow as 100µs, the 4302-QCW offers an effective and low-cost QCW solution.

Standard Computer Interfaces

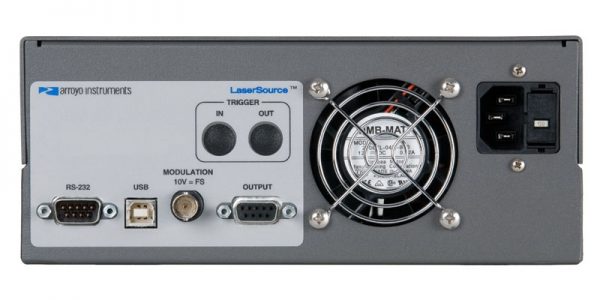

The 4302 includes both USB and RS232 computer interfaces, allowing for quick and easy connection to a PC for remote operation. In addition, the LaserSource’s command set is compatible with ILX and Newport controllers, allowing you to leverage any existing software you may have already developed.

Ground Loops Eliminated

Like all LaserSources, the 4302 includes isolated inputs and outputs. In technical terms, this means that every input and output signal is electrically isolated, so that offset voltages, ground connections, and AC noise will not “bleed” into other parts of the electronics. Even the photodiode input is fully isolated from the laser output, ensuring full isolation of the laser output. In practical terms, this means it’s impossible to create a ground loop through the LaserSource, a common problem in laboratory setups where several different instruments are used in the same test. No other driver on the market has this capability.

Analog Modulation

The 4302’s analog interface supports modulation rates up to 65kHz.

CW Mode Specifications

LASER CURRENT

PHOTODIODE CURRENT

LASER VOLTAGE

LIMITS

GENERAL
