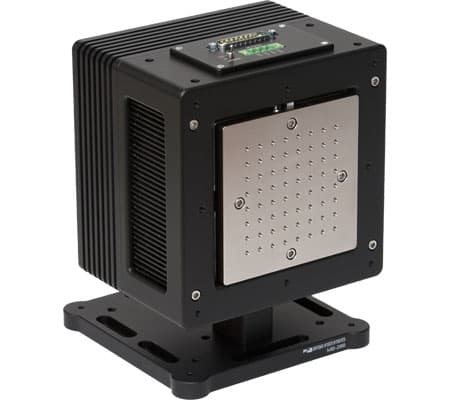

The 286 TECMount provides a flexible heating and cooling platform designed to meet demanding temperature control requirements. The 286 has larger plates with a breadboard-style mounting system, making them easy to integrate into a broad range of applications.
Standard Breadboard Plates
The 286-01 cold plate is available in a breadboard configuration with M3 holes, providing a flexible mounting platform.
Customizing the Cold Plate
When our standard breadboard plates just don’t fit, the cold plate on 286 mounts can be custom machined to fit the exact hole pattern of your application. We can put mounting holes just where you need them so your device mounts directly to the plate, without the need for adapters or modification.
High Temperature Option
The 286 mounts are available in an optional high-temperature configuration, 286-01-150, allowing for operation up to 150°C, but retaining the temperature range and thermal capacity of the standard mount. Because thermistors do not perform well at high temperatures, the sensor is replaced with a high accuracy Pt 100 RTD sensor. There is an additional cost for the high-temperature configuration, please contact the factory for a quote.
M-Series Mounting System
New with the 286 mounts is a series of mounting accessories to accommodate the integration of the 286 mounts onto your optical breadboard or other mechanical system, and ships standard with the 286.
Flexible Temperature Feedback
Many laser and LED devices feature an internal temperature sensor. The 286 has an external sensor input, allowing for easy switching between the plate sensor and the sensor located in the laser or LED.
Key Specs
Thermal Capacity | 100W at 25°C |
Cold plate | 4.2" square solid copper, hard nickel plated Breadboard, M3 holes |
Temperature Control
Temperature Range (°C) | +15 to +85 |
Sensor Type | 10kΩ Thermistor |
Recommended Controller | 5300-08-24 |
TE Current, Max (A) | 14.8 |
TE Voltage, Max (V) | 24 / 32.8 |
General
Size (H x W x D) [in(mm)] | 5.2 (132) x 6.4 (163) x 6.4 (163) |
TEC Connector | 17W2, male Phoenix 4-pin |
Datasheet | 286 TECMount Datasheet |
Manual | 286 TECMount User’s Manual |
Model | 286 TECMount CAD Model |
Model | 286 MKIT Mounting Kit CAD Model |
