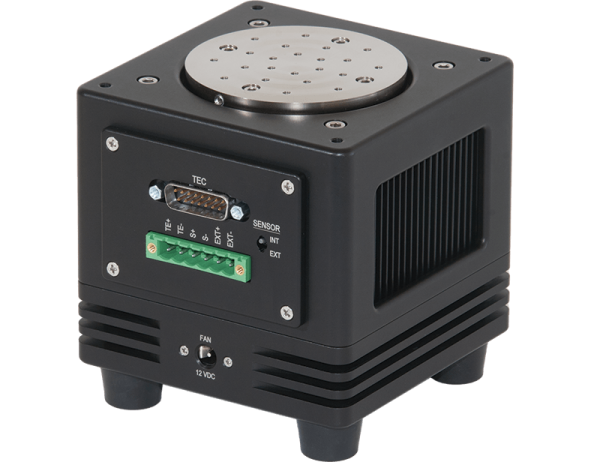

The 284 TECMount provides a flexible heating and cooling platform designed to meet demanding temperature control requirements. With a large 3″ diameter cold plate with a breadboard-style mounting system, the 284 is easy to integrate into a broad range of applications.

High Temperature Option

The 284 is available in an optional high-temperature configuration, 284-03-150, allowing for operation up to 150°C, but retaining the temperature range and thermal capacity of the standard mount. Because thermistors do not perform well at high temperatures, the sensor is replaced with a high accuracy Pt 100 RTD sensor.

Flexible Cold Plate

The 284-03 cold plate features a grid of M2.5 holes plus a mounting pattern for STAR LEDs.

Customizing the Cold Plate

When our standard breadboard plate just doesn’t fit, the cold plate on the 284 can be custom machined to fit the exact hole pattern of your application. We can put mounting holes just where you need them so your device mounts directly to the plate, without the need for adapters or modification.

M-Series Mounting System

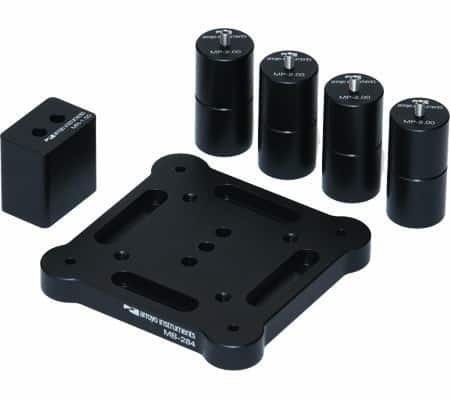

An optional accessory, the 284-MKIT is a series of mounting accessories to accommodate the integration of the 284 mounts onto your optical breadboard or other mechanical system.

Flexible Temperature Feedback

Many laser and LED devices feature an internal temperature sensor. The 284 has an external sensor input, allowing for easy switching between the plate sensor and the sensor located in the laser or LED.

Key Specs

Temperature Control

General
