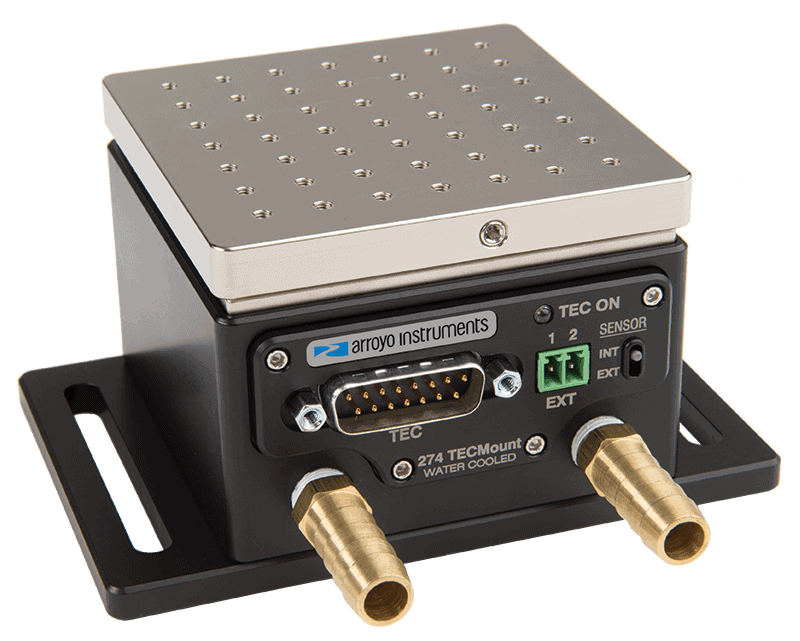

The 274 TECMount offers excellent cooling performance in a small footprint. By employing water cooling, the 274 achieves up to 180W cooling capacity when using 20C water (even more capacity with lower water temperatures).
Actively TEC Controlled
The 274 is an actively cooled mount, which means there is an integrated TEC to precisely control the plate temperature. The cold plate is hard nickel-plated copper for maximum thermal performance.
Water-Cooled
Water cooling enables a small form factor by using water, instead of air, to remove the waste heat from the system. Because the plate is actively cooled with a TEC, actual water temperature is not critical, although lower water temperatures does increase thermal capacity of the mount.
Flexible Mounting Options
The 274 can be moved to one side of the mounting base plate and also rated any direction. The base plate can also be removed entirely for integration into custom applications.
External Sensor Input
The 274 features an easy-to-use external sensor input. In applications where the device under test has an integrated sensor, you can easily use that sensor for temperature feedback. Simply wire the device’s sensor output to the EXT SENS connector and switch the Sensor switch to EXT. Your temperature controller is now receiving the device sensor.
Key Specs
Cold Plate | 3.2" square, M3 holes in breadboard pattern |
Thermal Capacity | 100W with 5305 TECSource 180W with 5400-15-28 TECSource At 25°C plate / 20°C water |
Temperature Control
Temperature Range (°C) | -25 to +85, non-condensing |
Sensor Type | 10kΩ Thermistor |
Recommended Controller | 5305 or 5300-10-18 or 5400-15-28 |
TE Current, Max (A) | 16 (recommend 12 Amp ITE Limit) |
TE Voltage, Max (V) | 33 |
Connections
TEC | DB-15, male |
External Sensor | Phoenix 2-pin |
Water | Barb, 3/8" I.D. tubing |
General
Mounting holes | ¼-20 slots, 4” on center |
Size (H x W x D) [in(mm)] | With base plate: 2.5 (64) x 3.2 (81) x 4.8 (122) Without base plate: 2.25 (57) x 3.2 (81) x 3.2 (81) |
Weight (lbs [kg]) | 2.8 [1.27] |
1260B TECSource Cable, 5A, 2m | |

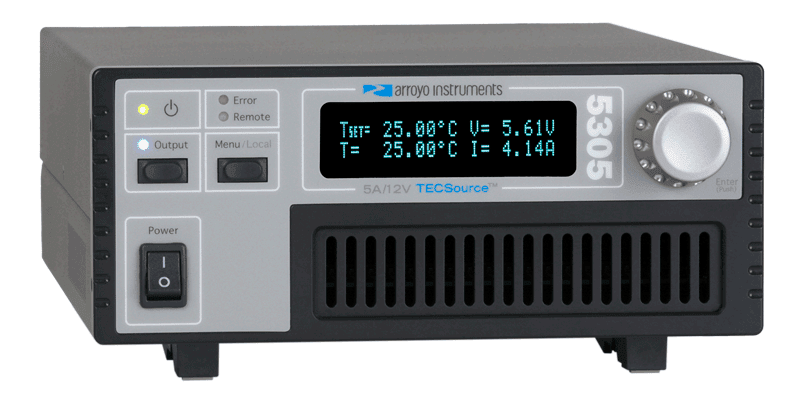

5305 TECSource, 5A/12V | |
1264-DB15 TECSource Cable, DB15, 15A, 2m | |

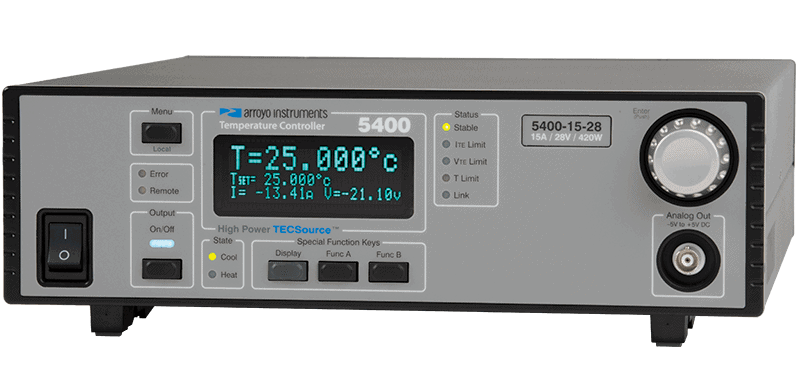

5400-15-28 TECSource, 15A/28V |
Datasheet | 274 TECMount Datasheet |
Manual | 274 TECMount User’s Manual |
Model | 274 TECMount CAD Model |
Application Note | AN-003 – Chiller Options for 274 Applications |
