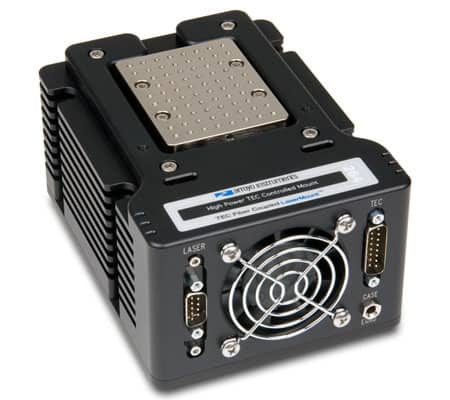

The 264M TEC LaserMount was designed for high-power devices needing active temperature control. With its large heat sink and integrated fan, the 264 can handle high thermal loads and broad temperature ranges.

Bread Board Cold Plate

Using a breadboard hole pattern found on optical tables, the 264-BB-DB9 provides a grid of threaded metric (M2.5) holes for maximum flexibility in mounting your thermal load. Be it a laser device, optic platform, or other application, the breadboard configuration gives you excellent long-term flexibility in how to mount your loads.

Active Cooling

The 264 TEC LaserMount was designed for high-power devices needing active temperature control. With its large heat sink and integrated fan, the 264 can handle high thermal loads and broad temperature ranges.

Thermistor Control

The 264 uses a 10K thermistor for temperature feedback. More details on working with thermistors can be found here.

High Temperature Option

The 260 Series mounts are available in an optional high-temperature configuration, allows for operation up to 150°C, while retaining the temperature range and thermal capacity of the standard mount. Because thermistors do not perform well at high temperatures, the sensor is replaced with a high accuracy Pt 100 RTD sensor. There is an additional cost for the high-temperature configuration, please contact the factory for a quote.

Device Cover

Beyond the mount itself, the 264 works with our optional device cover:

The 260-C cover enhances the stability of the laser by minimizing the impact of ambient air currents.

Input connectors

Temperature Control

General
