The 264 TEC High Power LaserMount can be configured to support many different types of devices and wire harnesses. Contact the factory or your local distributor for specific configurations.

Multi-Device Plate

The standard 264 multi-device cold plate has mounting holes that support the following devices:

• JDSU L3
• JDSU L4
• Alfalight AM6
• STAR LEDs
• many others

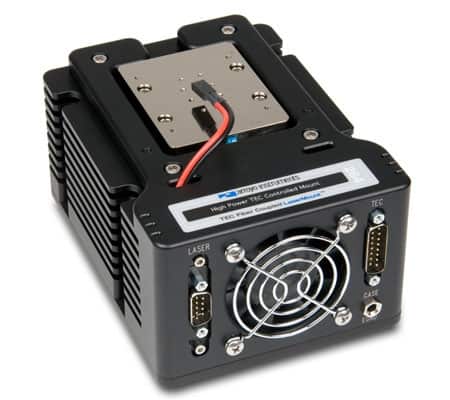

Device-specific electrical interfaces are often available, such as the 2-pin L4 connector shown in the photo above. Contact the factory for the model that supports your specific diode configuration.

Active Cooling

The 264 TEC LaserMount was designed for high-power devices needing active temperature control. With its large heat sink and integrated fan, the 264 can handle high thermal loads and broad temperature ranges.

Customized Device Support

If your device does not fit onto the standard hole patterns, the cold plate on the 264 can be customized to work with your device. Typically all that is needed is the datasheet for your device. Contact the factory for details and a price quote on customization.

Thermistor Control

The mount uses a 10K thermistor for temperature feedback. More details on working with thermistors can be found here.

High Temperature Option

The 260 Series mounts are available in an optional high-temperature configuration, allows for operation up to 150°C, while retaining the temperature range and thermal capacity of the standard mount. Because thermistors do not perform well at high temperatures, the sensor is replaced with a high accuracy Pt 100 RTD sensor. There is an additional cost for the high-temperature configuration, please contact the factory for a quote.

Device Cover

Beyond the mount itself, the 264 works with our optional device cover:

The 260-C cover enhances the stability of the laser by minimizing the impact of ambient air currents.
