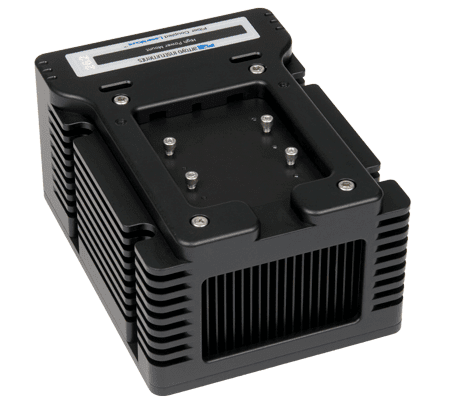

The 262 High Power LaserMount can be configured to support many different types of devices and wire harnesses.
Standard mount (as shown above) provides unwired DB9 for customers to connect their own device harness and a simple mounting plate with two mounting hole patterns.
Contact the factory or your local distributor for configurations to support the specific mounting and wiring needs for your device.
Customized Device Support
The heat sink on the 262 can be customized to work with your device. Typically all that is needed is the data sheet for your device. Contact the factory for details and a price quote on customization.
Passive Cooling
The 262 LaserMount was designed for high power devices not requiring full active temperature control, but still needing significant passive cooling to maintain the device temperature near ambient. With its large heat sink and integrated fan, the 262 can handle high thermal loads with a 0.25°C/W temperature rise.
Device Cover
Beyond the mount itself, the 262 works with our optional device cover:

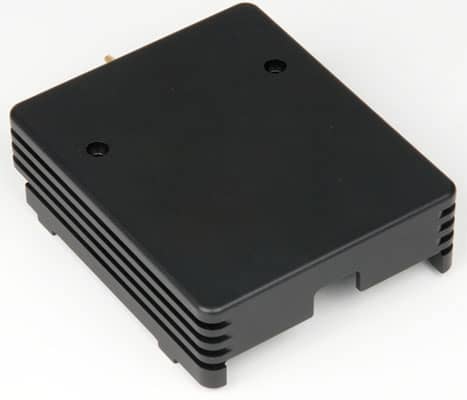

The 260-C cover enhances the stability of the laser by minimizing the impact of ambient air currents.
| Laser Package Supported | Various, contact factory |
| Thermal resistance (°C/W) | 0.25 |
Input connectors
| Laser Diode | DB-9, male or 9W4, male |
| Laser TEC | DB-15, male |
General
| Size (H x W x D) [in(mm)] | 3.0 (76.2) x 4.5 (114.3) x 6.0 (152.4) |
| Weight [lbs (kg)] | 3.8 (1.7) |
| Mounting holes | ¼-20 x 4 |
 | 1220B LaserSource Cable, 4A, 2m |
 | 1228C LaserSource Cable, 20A, 2m |
 | 1260B TECSource Cable, 5A, 2m |
 | 260-C Cover for 260 Series Mounts |
 | 5305 TECSource, 5A/12V |
| Datasheet | 260 Series LaserMount Datasheet |
| Manual | 260 Series LaserMount User’s Manual |
