The 207-150B TEC LaserMount offers excellent cooling performance for lasers in the 5-10W optical power range. Its high-temperature operation is particularly useful when testing LEDs (it includes a mounting pattern for STAR LEDs).
Pluggable Laser Interface
The 207-150B features a 6-pin connector for the laser/LED, photodiode, and thermistor connections of the laser or LED. Wiring is done with simple screw terminals and can be quickly reconfigured for different devices, or additional plug can be ordered to make up multiple wiring harnesses.
Accessories
Beyond the mount itself, the 207-150B works with our optional fiber tray and device cover:

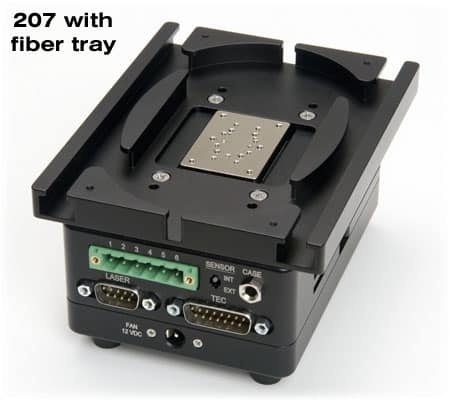

The 200-TRAY fiber tray bolts directly to the top of the mount and makes fiber management simple.

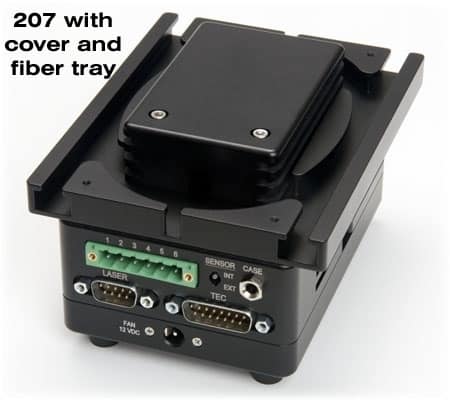

The 200-C cover enhances the stability of the laser by minimizing the impact of ambient air currents.
High Temperature
The 207-150B high-temperature configuration, allows for operation up to 150°C, while retaining the temperature range and thermal capacity of the standard mount. Because thermistors do not perform well at high temperatures, the sensor is replaced with a high accuracy Pt 100 RTD sensor. There is an additional cost for the high-temperature configuration, please contact the factory for a quote.
DB-9 & DB-15 Interfaces
The laser driver and temperature controller connections are made through a DB-9 LDD and DB-15 TEC connector on the side of the mount, which allows for quick connections to any Arroyo Instruments controllers.
Need More Thermal Capacity?
For applications requiring more thermal capacity than the 207-150B can offer, take a look at the 264 LaserMount, which offers up to 30W of capacity.
| Laser Package Supported | Standard Butterfly, AlfaLight AM6, JDSU L3, JDSU L4, Lumics LU09, Scheaumann SP940, Star LED’s Custom configurations available |
| Thermal Capacity | 12W At 0°C delta from ambient, 25°C ambient temperature |
Input connectors
| Laser Diode | DB-9, male |
| Mount TEC | DB-15, male |
Temperature Control
| Temperature Range (°C) | +15 to +150, non-condensing |
| Sensor Type | Pt 100Ω RTD |
| TE Module Imax (A) | 6 |
| TE Module Vmax (V) | 9.8 |
| Recommended Controller | 5305 TECSource |
General
| Mounting holes | ¼-20 through-hole, 3” on center (x2) |
| Device mounting screws | 0-80 x 1/8” (x4) 2-56 x 1/8” (x4) 4-40 x 1/8” (x6) |
| Size (H x W x D) [in(mm)] | 2.44(62) x 3.50(89) x 5.00(127) |
 | 1220B LaserSource Cable, 4A, 2m |
 | 1260B TECSource Cable, 5A, 2m |
 | 200-C Laser Cover |
 | 200-TRAY Fiber Management Tray |
 | 5305 TECSource, 5A/12V |
